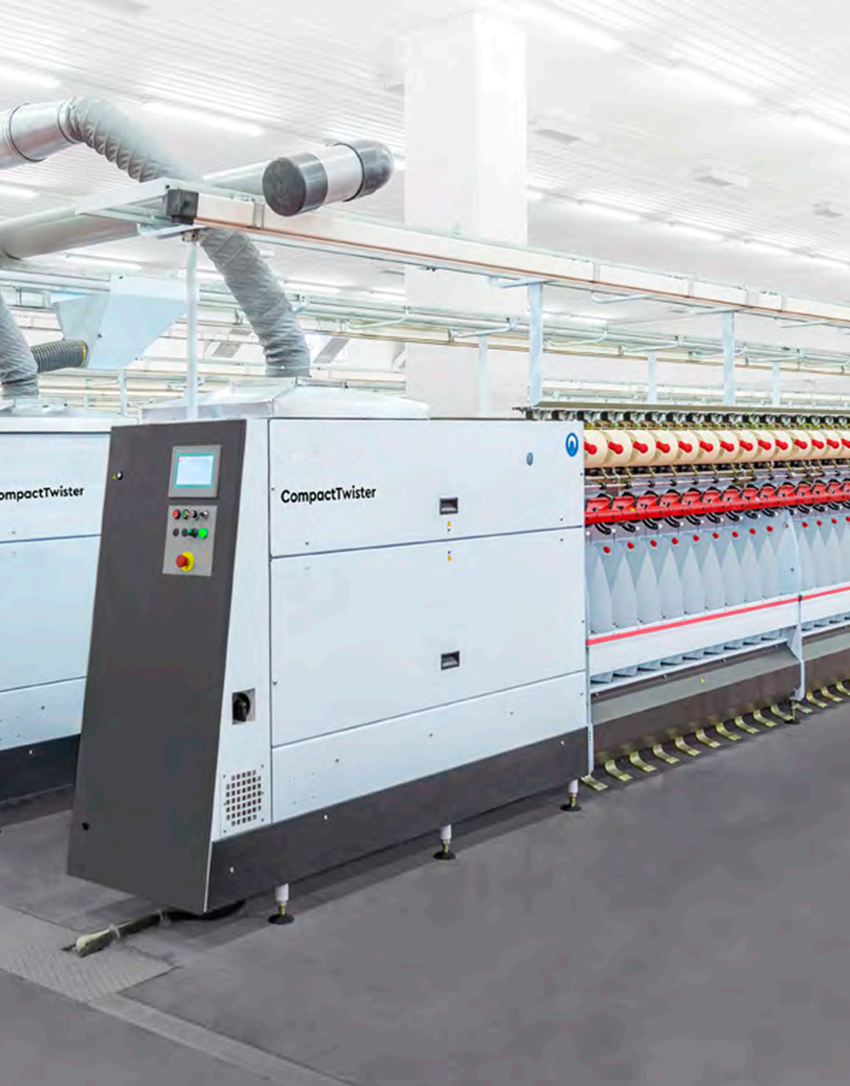

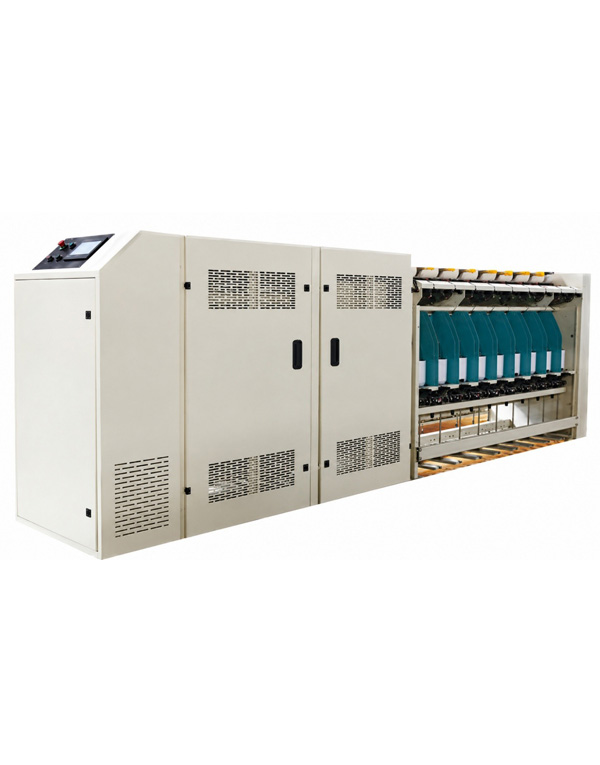

Customized CompactTwister VTS-09

Description

Product Features

1. The take-up system and spindle are driven by independent motors, ensuring stable and efficient operation.
2. All major operating parameters are controlled and configured through a PLC (Programmable Logic Controller).
3. The take-up system, spindle, and twist mechanism operate in perfect synchronization.
4. The take-up bobbin is equipped with an automatic lifting function to prevent yarn surface scuffing in the event of yarn breakage.
5. The traverse system is driven by a high-precision servo motor directly connected to a ball screw shaft, providing accurate and stable yarn winding.

Advantages

• Oil-lubricated ball screw reduces wear, minimizes maintenance, and extends service life.
• Produces excellent package formation with uniform winding quality.
• Multiple package-forming modes are available to satisfy different yarn winding requirements.
• Compact machine design occupies approximately 10% less floor space than conventional models.

Applications

Suitable for twisting all types of spun yarns, including:

• Cotton yarn
• Wool yarn
• Polyester spun yarn
• Blended spun yarns

Typical yarn count range:

Ne 3/2–120/2 multi-ply cotton, spun polyester, wool yarn, and blended yarns.

Machine Configuration

Operating Configuration

• Double-sided
• Single-layer
• Pneumatic yarn guide

Standard Spindle Configurations

• 162 spindles (18 × 9)
• 144 spindles (16 × 9)
• 126 spindles (14 × 9)
• 108 spindles (12 × 9)

Technical Specifications

Key Benefits

• Independent motor drive for superior speed control.
• High-precision PLC automation.
• Fully synchronized twisting and winding process.
• Automatic bobbin lifting to protect yarn quality.
• Servo-driven traverse system for consistent package density.
• Long service life with low maintenance requirements.
• Compact footprint and energy-efficient operation.
• Suitable for a wide variety of spun and blended yarns.
