Description
Product Overview

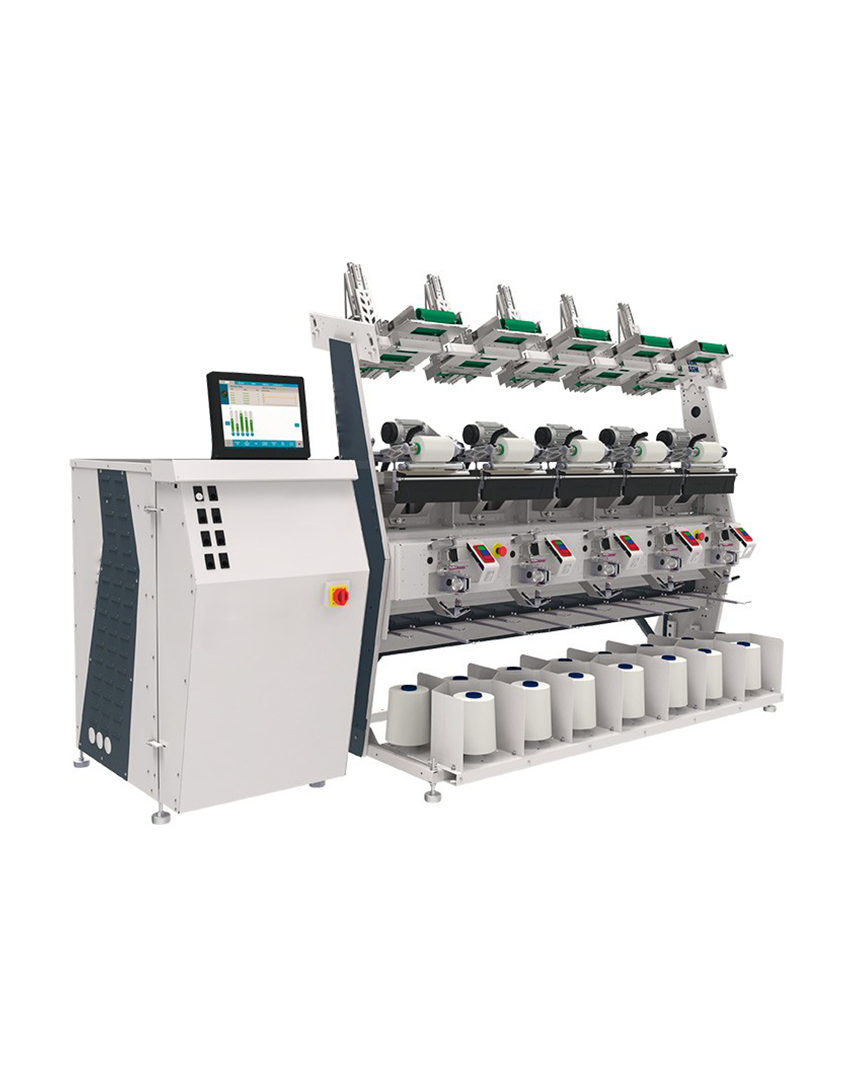

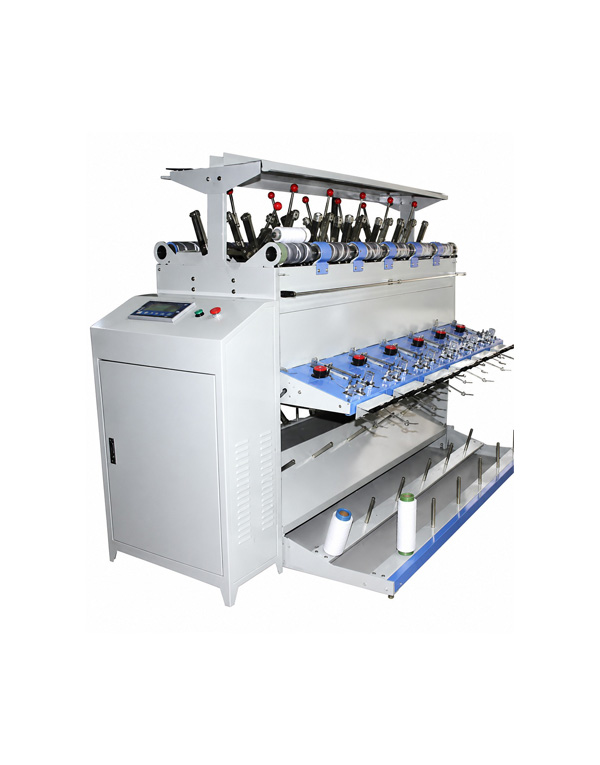

This Machine is designed for combining two or three yarns into a single package with excellent winding quality and precise tension control. The machine features independent spindle drives, intelligent electronic controls, and flexible production settings, making it ideal for producing a wide variety of doubled yarns.
Custom machine configurations are available to meet specific customer requirements.
Product Features
- Each spindle is equipped with an independent motor, while the overall speed is controlled by the main inverter, allowing precise speed adjustment and convenient operation.
- An automatic yarn break detector monitors each yarn end to prevent missing strands and ensure consistent product quality.
- The Human-Machine Interface (HMI) features a touchscreen for easy input of spindle speed, winding length, and operating parameters.
- The yarn tension device allows quick and simple tension adjustment by changing the tension discs (tension slices).
- Two independent main inverters control the left and right sides of the machine, enabling the production of different yarn types simultaneously on the same machine.
Applications
Suitable for doubling:
- Cotton yarn
- Polyester yarn
- Wool yarn
- Blended yarns
- Other spun yarns
Capable of combining 2 to 3 yarns as standard, with the option to process more yarn ends when equipped with a suitable yarn creel.
Technical Specifications
| Item | Specification |
| Machine Type | Double-sided, Single-layer |
| Spindle Gauge | 280 mm |
| Number of Spindles | 60 spindles (12 spindles per section) |
| Number of Yarn Ends | 2–3 yarns (expandable with yarn creel) |
| Take-up Speed | 100–700 m/min |
| Package Shape | Cylindrical or Cone |
| Finished Package Size | Ø130–200 × L152 mm (custom sizes available) |
| Control System | Individual Spindle Control |
| Anti-overlap System | Electronic |
| Spindle Speed | 1,000–3,000 rpm |
| Motor Power | 90 W per spindle |
| Machine Dimensions (L × W × H) | 8.8 × 1.72 × 1.56 m |
| Customization | Available |
Key Advantages
- Independent spindle drive for maximum flexibility.
- Precise inverter-based speed control.
- Intelligent yarn break detection system.
- Easy-to-use touchscreen control panel.
- Accurate yarn tension adjustment.
- Simultaneous production of different yarn types.
- Stable winding quality with electronic anti-overlap control.
- Low maintenance and high production efficiency.
- Custom-built configurations available to meet specific production requirements.
